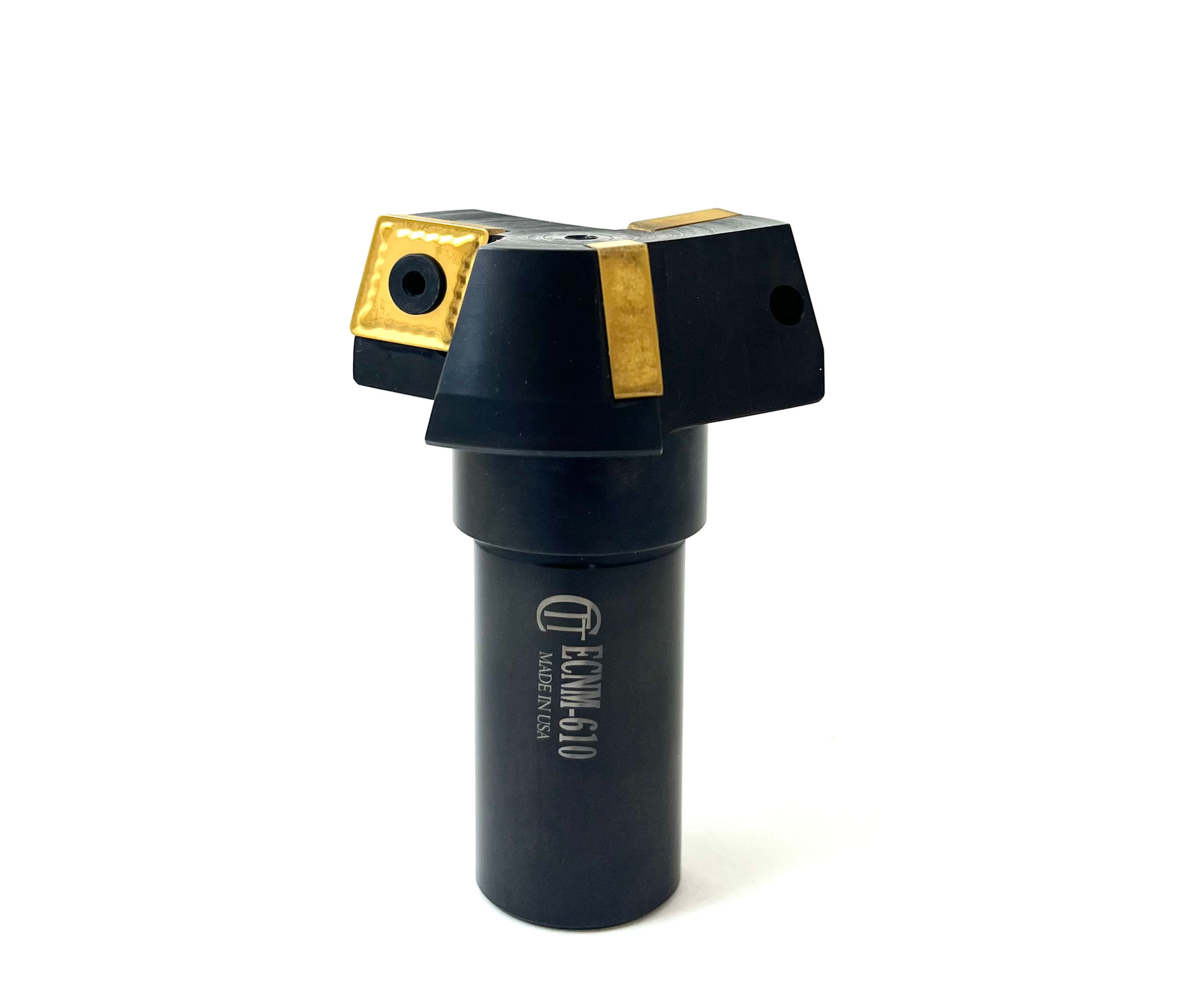

ECNM-610 · 15­° Weld Prep Mill · 1 1/4" Shank
  • Catalog Page 12
  • Recycle your used CNMG inserts by milling with the 100° corners
  • Excellent for weld prep, facing, and chamfering
  • Four indexes per insert
  • No clamps to impede chip flow
  • Cutter bodies made in the USA


Orders placed by 2 PM ET (Monday-Friday) often ship same day


Notes:
  • Screws & wedges are included
  • Inserts are sold separately
  • Special sizes can be quoted

ECNM-610 · 15­° Weld Prep Mill · 1 1/4" Shank

$394.80Price

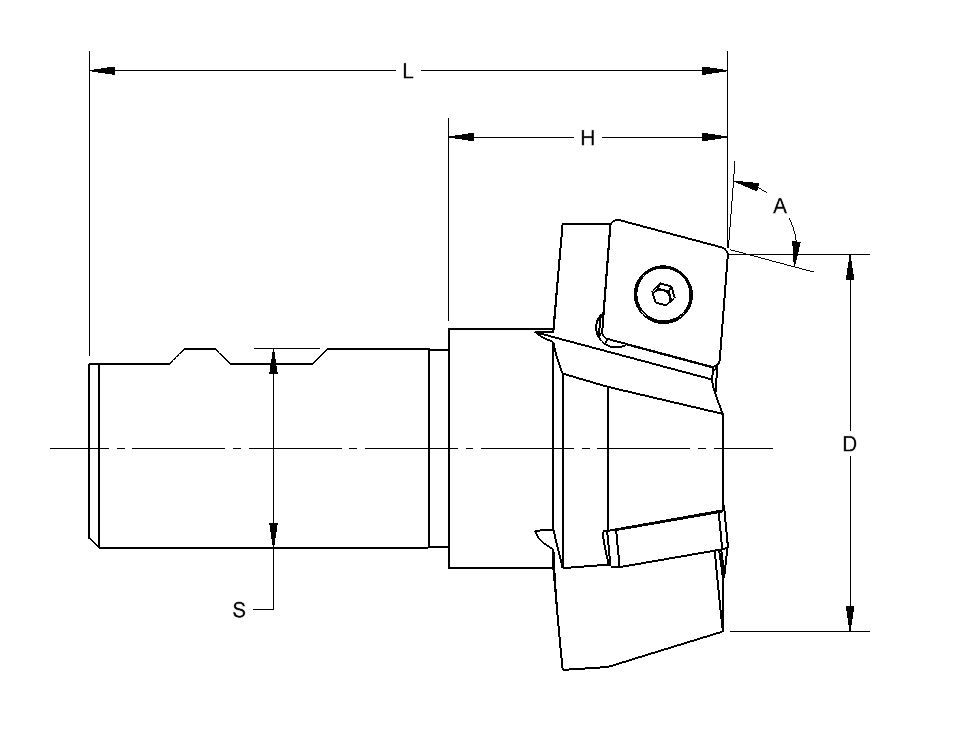

  • PRODUCT SPECIFICATIONS



    Catalog Page 12



    Angle (A) 15°
    Nose Diameter (D) 2.50
    Shank Size (S) 1.250 Weldon
    Overall Length (L) 4.00
    Head Length (H) 1.75
    Max. Depth of Cut (ap) 0.67
    Flutes 3



  • INSERTS & HARDWARE

    Insert Style CNMG-643
    Inserts Required 3
    Indexes Per Insert 4
    Insert Screw 25H8S56
    Wrench  1/8 Hex
